Roofing sandwich panels are widely used in industrial buildings, warehouses, cold storage facilities, workshops, and commercial projects.

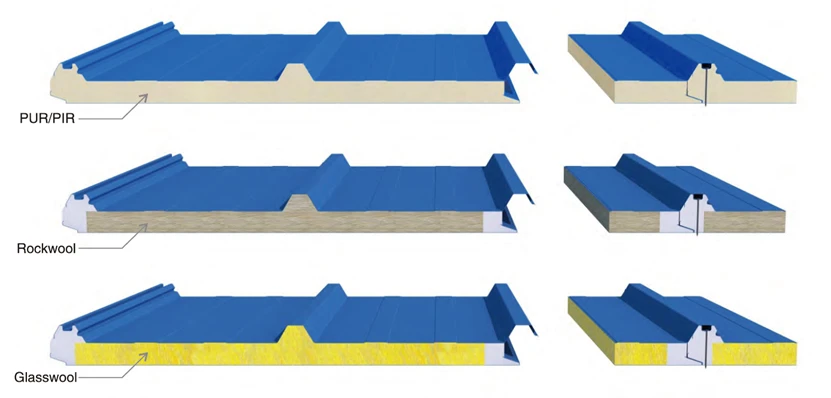

According to the fastening method, roofing sandwich panels can be classified into Hidden-Nail Roofing Sandwich Panels and Exposed-Nail Roofing Sandwich Panels.
While both systems provide excellent thermal insulation and structural strength, hidden-nail roofing panels offer significant advantages in waterproof performance, air tightness, and long-term durability.
The most significant difference lies in the fastening system. Exposed-Nail roofing panels are fixed directly through the panel surface, leaving screws visible on the roof.
Although this installation method is simple and cost-effective, the screw penetrations can become potential leakage points over time due to weather exposure, thermal expansion, and aging sealants.
In contrast, Hidden-Nail Roofing Sandwich Panels utilize a concealed fastening design. The screws are installed beneath the overlapping joint and completely covered after installation.
This design eliminates direct penetrations on the roof surface, greatly reducing the possibility of water infiltration and ensuring superior waterproof performance.
As a result, hidden-nail roofing panels are particularly suitable for projects located in regions with heavy rainfall, strong winds, or demanding environmental conditions.
Another key advantage is excellent air tightness. The specially engineered interlocking joint system creates a tighter connection between adjacent panels, effectively preventing air leakage and moisture penetration.
Enhanced air tightness improves the overall thermal insulation performance of the building, helping maintain stable indoor temperatures while reducing energy consumption.
This feature is especially important for cold storage facilities, food processing plants, pharmaceutical warehouses, and temperature-controlled environments.
In addition, hidden-nail roofing panels provide a cleaner and more modern appearance because no fasteners are visible on the roof surface.
The concealed fastening system also protects screws from direct exposure to sunlight, rainwater, and corrosive environments, extending the service life of the entire roofing system while reducing maintenance costs.

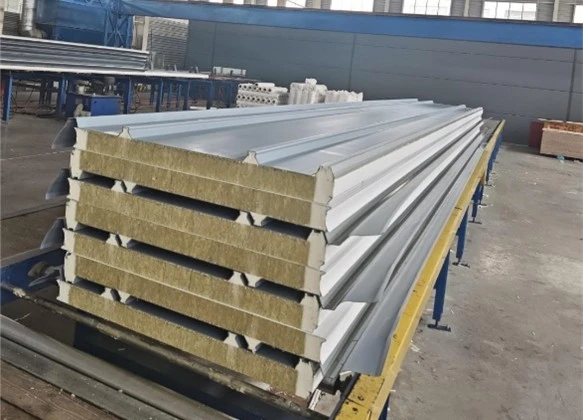

Our Hidden-Nail Roofing Sandwich Panels are manufactured using advanced production technology and premium insulation materials such as PIR, PUR, and Rock Wool.
Compared with conventional Exposed-Nail roofing panels, our products deliver superior waterproof performance, stronger air tightness, better energy efficiency, and enhanced long-term reliability.
With extensive export experience and successful delivery of more than 500 projects worldwide, we are committed to providing customized roofing solutions that meet international standards and customer requirements.
For projects where waterproofing, energy efficiency, and durability are critical considerations, Hidden-Nail Roofing Sandwich Panels are the ideal choice.
