Products Description
Cold storage panel is a composite material made of two layers of metal panels filled with polyurethane foam. It has beautiful appearance, good overall effect, good heat preservation, fire prevention and sound insulation performance. It is lightweight, high-strength, easy to install, short construction period, good comprehensive benefits, and high cost performance. It is widely used in the walls and roofs of industrial plants, refrigerators, stadiums and other buildings, and is the preferred material for modern energy-saving buildings.
Product parameters
|
The technical specifications of cold storage panel |
||||
|
Thickness range |
Temperature difference between inside and outside |
Height of wall panel |
Length of roof panel |
Applicable cold storage temperature |
|
mm |
℃ |
m |
m |
℃ |
|
100 |
30 |
5 |
4.45 |
-15 |
|
125 |
35 |
5.5 |
5.2 |
-20 |
|
150 |
50 |
6 |
5.85 |
-25 |
|
175 |
65 |
6.5 |
6.3 |
-30 |
|
200 |
75 |
7 |
6.8 |
-40 |
Product advantages
The polyurethane sandwich panel adopts a concave convex groove structure, which improves the insulation and air tightness at the joints of the panel, and is specially designed for refrigeration and cold storage rooms.
The board is uniform and stable, with excellent thermal insulation and waterproof performance.
Lightweight and aesthetically pleasing, effectively addressing temperature differences in the refrigeration industry.
Within a certain modulus, the library can be long Wide Three directions can be freely changed, and it can be expanded or reduced as needed. The assembly team can also be disassembled and reassembled in different locations, making installation simple and fast
application area
Food quick freezing processing and refrigeration
Food processing plant
Storage of dairy products
Biological and pharmaceutical products
Indoor prefabricated cold storage
Cold chain transportation vehicle cold storage
Transaction Customer Case
On July 22, 2024, our company successfully shipped a batch of PIR cold room panels to a Russian customer used for his local cold storage project. Remarkably, it only took about 10 days from the beginning of communication with the customer to the completion of the order. We have relevant inspection certificates and experience in delivering goods to Mongolia, and provide professional suggestions and programs to customers according to their needs. These factors contribute to our cooperation.Cold room panels are made up of Polyisocyanurate terms (PIR) or Polyurethane terms (PUR) materials, both in PIR and PUR have very good insulated effect, are ideal materials for cold room panels, The main difference is that PIR has a higher fireproof rating than PUR. The cold storage board produced by us has the advantages of uniform foaming, high density, good air tightness and so on, and is well received by customers.

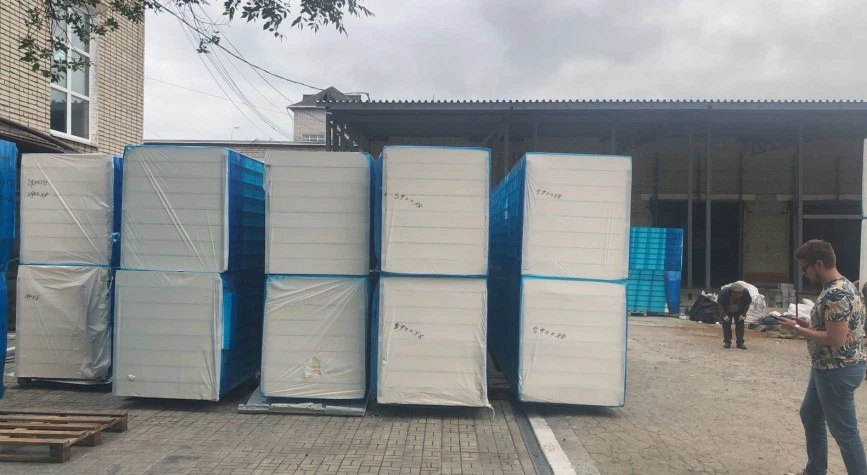

Through our professional logistics and export operation team, this batch of cold room panels were successfully shipped. Now the customer has received the goods and successfully unloaded them. The following is the unloading photo provided by the customer:
f a q
1.You are manufacture factory or trading company?
We are manufacture factory. You are welcomed to visit us at any time. In the workshop,it has a complete advanced equipment system for making steel structures and panels. So we can make sure the good quality and also the competitive price.
2.What is your difference with other products?
Our products have the environmental,protection,beautiful,insulation,fast installation,etc advantages.
3.Can you offer design service?
Yes,we have an engineer team and can design for you according to your requirements.Architectural drawing,structure diagram,processing detail drawing and installation drawing will be made and let you confirm in different time of the project.
4.What's the delivery time?
The delivery time depends on the size and quantity of building.Generally within 30 days after receiving the payment.And partial shipment is allowed for big order.
5.What's the payment term?
TT and L/C are acceptable; But T/T will be more appreciated. 30% deposit and balance before shipment.
6.Can you accept the inspection from a third party?
Yes. We have enough experience to cooperate with the inspection project and we have obtained ISO certification SGS certificate and the Australian official rockwool asbestos-free certification
