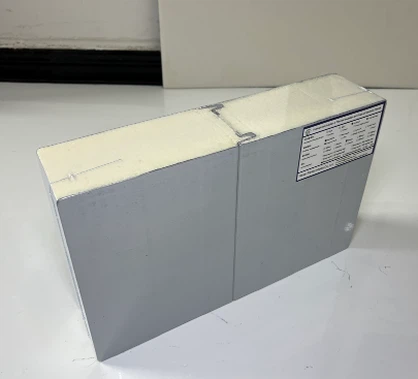

Foaming Agent PU Insulation Board

Driven by the dual goals of carbon peaking and carbon neutrality as well as global climate governance, building energy-saving materials are achieving a leap-forward development from traditional high-carbon products to low-carbon and intelligent solutions. As a representative of industrial innovation, the fourth-generation energy-saving and thermal insulation polyurethane panels using eco-friendly blowing agent (hereinafter referred to as HFO-PU panels) see their GWP (Global Warming Potential) reduced by over 99% compared with conventional products. Boasting an ultra-low thermal conductivity of 0.018-0.022 W/(m·K), they are reshaping the landscape of the building thermal insulation industry.

1. The fourth-generation HFO blowing agents (e.g. HFO-1234ze, HFO-1233zd) feature C=C double bonds in their molecular structure. They have an Ozone Depletion Potential (ODP) of zero, and their Global Warming Potential (GWP) is merely 1/1000 of that of traditional HFC blowing agents. Their atmospheric half-life is shortened to 11 days, while traditional HFCs can remain in the atmosphere for decades.

2. Comparison of Technical Parameters between the 3rd and 4th Generations

3. Production Process Innovation

(1) High-pressure full-pour technology: Equipped with a digital control system, it keeps the deviation of foaming density within ±3%, eliminating cold bridge issues caused by uneven density at edges and corners in traditional processes.

(2) On-line thermal imaging monitoring: An infrared thermal imager captures the temperature field of foaming reaction in real time. It dynamically adjusts parameters of the mixing head to ensure the closed cell rate reaches no less than 95%.

(3) Application of bio-based raw materials: Wanhua Chemical's Hybrid PU technology raises the biomass content up to 60%, cutting carbon emissions by 45% compared with conventional production processes.

4. Upgraded Fire Resistance Performance

Adopting dual technologies of chemical structure flame retardancy + physical barrier:

• Nano aluminum hydroxide flame retardant system: Flame retardants with particle size below 50nm are evenly dispersed, forming a dense ceramic layer during combustion.
• Graphene reinforced layer: Graphene film is laminated on the panel surface, raising the oxygen index to 32% (the national standard Class B1 requires no less than 30%).

1. Ultra-low Energy Buildings

(1) Passive Houses: Adopt 120mm thick HFO-PU panels together with airtight layer design, achieving building energy consumption ≤ 15 kWh/(m²·a).

(2) Prefabricated Buildings: Modular prefabricated wall panels integrated with HFO-PU insulation layers boost on-site installation efficiency by 70%.

2. Cold Chain Logistics Upgrade

(1) Cold storage insulation system: The 150mm thick HFO-PU panels adopt thermal bridge break joint design, cutting monthly power consumption of cold storage at -18℃ by 23%.

(2) Refrigerated transport equipment: Lightweight HFO-PU panels (density ≤ 40kg/m³) reduce the dead weight of refrigerated containers by 15% and increase the payload by 12%.

3. Special Industrial Applications

(1) Thermal insulation for LNG storage tanks: With excellent low-temperature resistance down to -196℃, the layered spraying technology creates a seamless structure.

(2) New energy vehicles: HFO-PU composite materials are used for battery pack enclosures. The products have passed UL94 V-0 flammability rating certification. Compared with traditional metal enclosures, they reduce weight by 40% and deliver active thermal management performance.

1. Innovation in Material Technology

(1) Self-healing technology: Microencapsulated healing agents (50-200 μm in diameter) are embedded into the panels, achieving a crack repair rate of over 90%.

(2) Phase change energy storage materials: Paraffin/graphene composite phase change layers enable adaptive temperature regulation between day and night, further cutting air conditioning energy consumption by 40%.

2. Smart Manufacturing

(1) Digital Twin Factory: Production line data is collected via the Internet of Things, and AI algorithms optimize parameters such as foaming pressure and temperature in real time.

(2) Blockchain Traceability System: The entire process from raw material procurement to construction and installation is recorded on the blockchain, complying with traceability requirements of the EU Carbon Border Adjustment Mechanism (CBAM).

3. Circular Economy Model

(1) Chemical depolymerization and recycling: The ChemCycling technology developed by BASF can depolymerize waste HFO-PU panels into virgin-grade polyols.

(2) Decentralized recycling network: A trade-in scheme has been established, achieving a recovery rate of 75% for used panels.

The fourth-generation energy-saving thermal insulation polyurethane panels with eco-friendly blowing agents represent not only a breakthrough in material technology, but also a strategic pillar for the low-carbon transition of the construction industry. As the cost of HFO blowing agents decreases and carbon pricing mechanisms improve, this material will accelerate the replacement of conventional thermal insulation systems.
